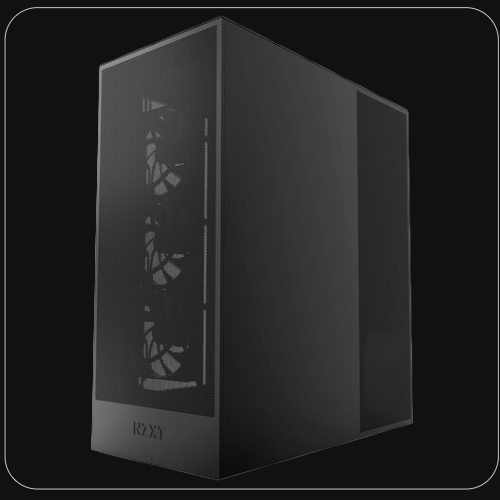

NZXT H7 Flow Mid-Tower Case (Black, 2024)

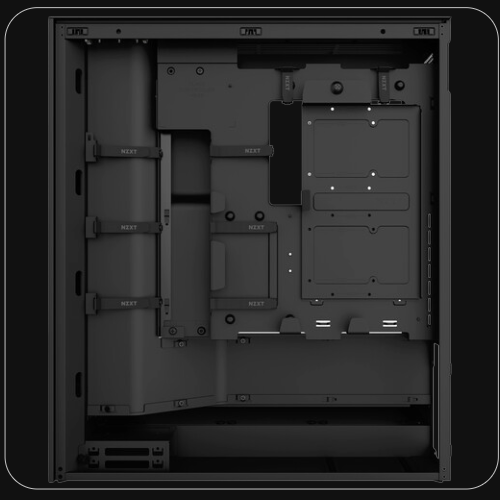

Enhance the cooling capabilities of your system while looking sleek and stylish with the black H7 Flow Mid-Tower Case from NZXT. Designed to fit a wide range of systems, the 2024 edition of the H7 Flow incorporates a unique interior meant to promote airflow while also keeping your cables tucked away for a clean and unique look. Constructed from SGCC steel, the H7 Flow offers rigidity while a dark tinted tempered glass side panel allows you to see your build. Tool-less panel access reveals a dedicated 1.3" cable management space, revealing the multiple storage drive installation points consisting of two 2.5" bays and two 2.5/3.5" combo bays. The roomy interior supports large format graphics cards up to 16.1" long as well as CPU coolers up to 7.8" tall. Multiple mounting points allow you to install a variety of fans and AiO radiators at the front, top, bottom, and rear of the case with three NZXT F120Q fans preinstalled at the front panel. Additionally, the top panel of the H7 Flow provides you with two USB-A 3.2 Gen 1 and one USB-C 3.2 Gen 2 ports for your peripherals alongside a single 3.5mm combo audio jack.
Interior Design

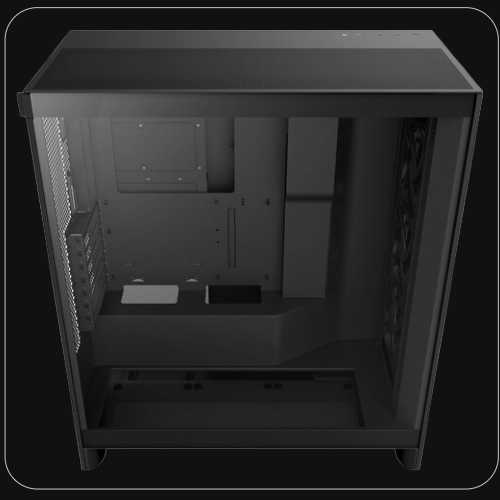

Sporting a unique look, the 2024 edition H7 Flow uses a multi-chamber design that gives builders access to a fully accessible bottom panel for additional airflow while keeping the ATX power supply hidden behind a shroud which also optimizes cable management. The motherboard tray supports a wide range of ATX, M-ATX, M-ITX, and E-ATX form factors with ample room for the rest of your key components.Fan Installation
The interior of the H7 Flow allows you to install a wide range of fans with three 120 or 140mm fans at the front, a 120 or 140mm fan at the rear, three 120 or two 140mm fans at the top, and three 120mm fans on the bottom plate.Radiator Support

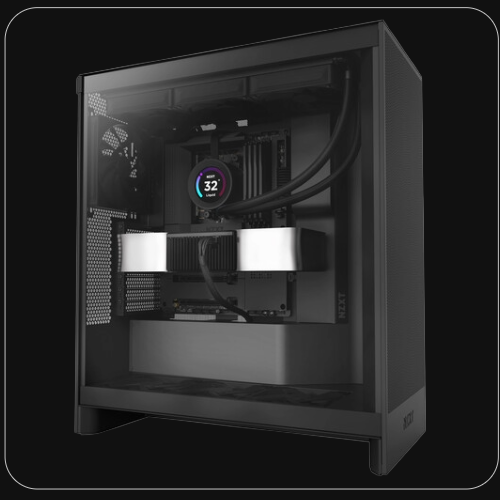

With support for liquid AiO coolers, you can install a variety of radiators all around the H7 Flow. Install radiators up to 420mm at the front and 360mm at the top or bottom of the case. You also have the option to install a 120mm radiator on the rear panel.Tool-less Design

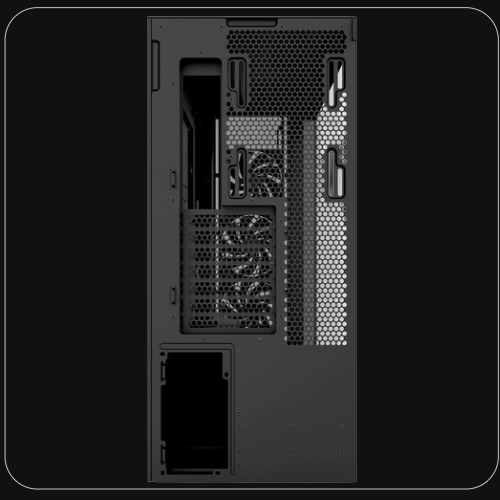

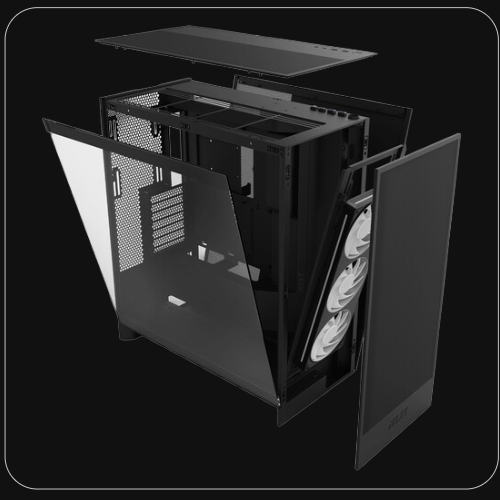

With easy dismantling of the top, front, and side panels, you can upgrade your system and access your wire management spaces. This also gives you access to the various dust filters found in the top, front, and bottom panels.Here are the features of the product.
- ATX, M-ATX, M-ITX, E-ATX Support
- Steel Frame & Dark Tinted Glass
- 2 x 2.5" & 2 x 2.5/3.5" Drive Bays
- 7 x Expansion Slots
- USB 3.2 Gen 1 & Gen 2 | 3.5mm Audio Jack
- Supports GPUs up to 16.1" Long
- Supports CPU Coolers up to 7.8" Tall
- 1.3" Cable Management Space
- 3 x Preinstalled F120Q Fans
- Supports AiO Radiators
These are the technical specifications.
| Brand | NZXT |
|---|---|
| Model | CM-H72FB-01 |
| Part Number | CM-H72FB-01 |
| Front Ports | 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x Audio, |
|---|
| Fan Options |
Front: 3 x 120 mm / 3 x 140 mm (3 x F120Q included) Top: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm Rear: 1 x 120 mm / 1 x 140 mm Fan Specs Model: F120Q Airflow Fan (Case Version) Speed: 1,350 ± 150 RPM Airflow: 60.2 CFM Static Pressure: 1.05 mm-H2O Noise: 24.1 dBA Fan Connector: 3-pin |
|---|---|
| Pre-installed Fans | Front - 3 x 120mm |
| Radiator Options |
Front: Up to 420 mm Top: Up to 360 mm Rear: Up to 140 mm |
| Max GPU Length | 410 mm |
|---|---|
| Max CPU Cooler Height | 185 mm |
| Max PSU Length | 200 mm |
| Dimensions | W: 244mm H: 544mm D: 468mm (with feet) |
| Features |
The H7 Flow maintains a classic mid-tower look while enabling direct GPU cooling with bottom fan support. Ultra-fine perforation on the panels maximizes airflow. Includes 3 x 120mm fans. Accommodates up to 420mm radiators in the front, 360mm radiators up top, plus a 10-fan capacity to meet the cooling needs of any build. Crafted from durable steel and tempered glass panels. Rigorously tested to ensure long-lasting performance and appearance over the years. Experience simplified building with an intuitive cable management system and tool-less panel access. Supports both ATX and EATX motherboards, and PUs up to 410mm. |
|---|
