Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
EZ Debug LED: Easiest way to troubleshoot.
Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
EZ Debug LED: Easiest way to troubleshoot.
Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Set the foundation of your next business PC build with the robust MSI PRO B760-VC WIFI IV LGA 1700 ATX Motherboard. Designed to leverage the power of various Intel CPUs, the PRO enhances system performance suitable for operating multiple programs with speed and reliability.

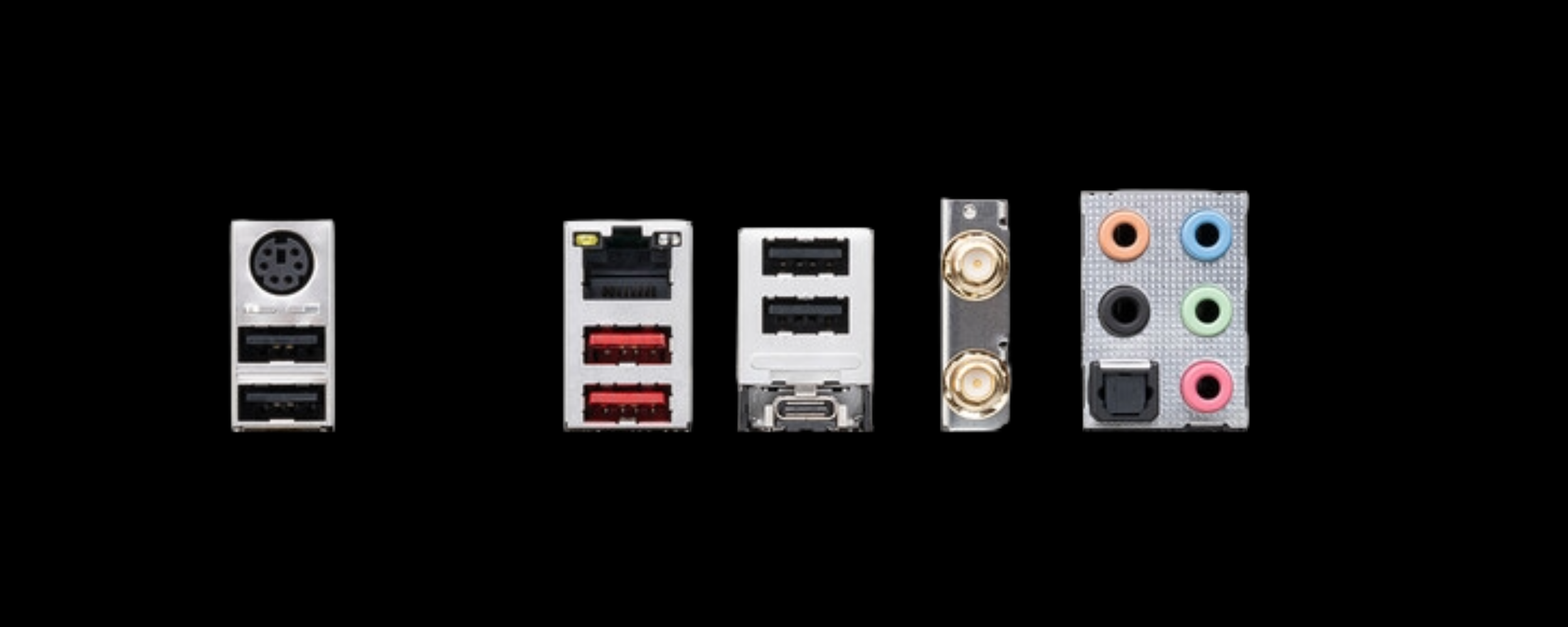

Intel's LGA 1700 socket rests at the heart of the Pro, allowing you to install a variety of 12th, 13th, and 14th Gen processors to match your needs. Four DDR5 RAM slots allow you to install up to 256GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with an assortment of PCIe 3.0 and 4.0 x16 expansion slots. Between back-panel connections and internal headers, you get several USB-A 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. You also get Bluetooth 5.4 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with a built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 7 options, respectively. You also get deep and immersive 7.1-channel audio suitable for media, conference calls, and games alike. The PRO also supports Windows 10 and 11 operating systems.
Cooling Capabilities
Fully Fan Control ensures your internal fans are meeting thermal demands properly through software that can operate automatically or manually.
DIY Friendly
Whether you are new to constructing PCs or a seasoned builder, the PRO is designed to offer a variety of enhancements that ease the installation process. EZ M.2 Clip makes inserting and securing storage devices easier.
Expansion Slots
There are five PCIe x16 expansion slots featured on the PRO, allowing you to install a wide range of graphics and utility cards. You get one PCIe 4.0 in x16 mode, one PCIe 4.0 in x4 mode, and three PCIe 3.0 in x1 mode.
Protection
A Steel Armor PCIe slot provides added strength ideal for heavier graphics cards, thanks to extra solder points and metal casing. Double ESD protection adds a grounding layer around the mounting holes to prevent static discharges. The PRO is Windows 11 Certified, ensuring a worry-free installation.
Built for Speed
Leveraging the power of PCIe 4.0 technology, you can experience data-transfer speeds up to 64 Gb/s for your M.2 storage and graphics cards. Dual-channel DDR5 RAM DIMM slots can handle memory frequencies up to 6800 MHz and offer XMP support for a wide range of memory brands, ensuring that performance meets your needs.
Security
The PRO offers enhanced security functions within the BIOS. Secure Boot ensures your system has not been compromised and only starts your system when all components and boot software have been properly verified.
