Fractal Design Meshify 3 Mid-Tower Case (Black with Tinted Tempered Glass)

from $154.98

Shop The ASUS Store

Free Shipping On All Orders
Free Hassle-Free Returns

Shop All Video Graphics Cards

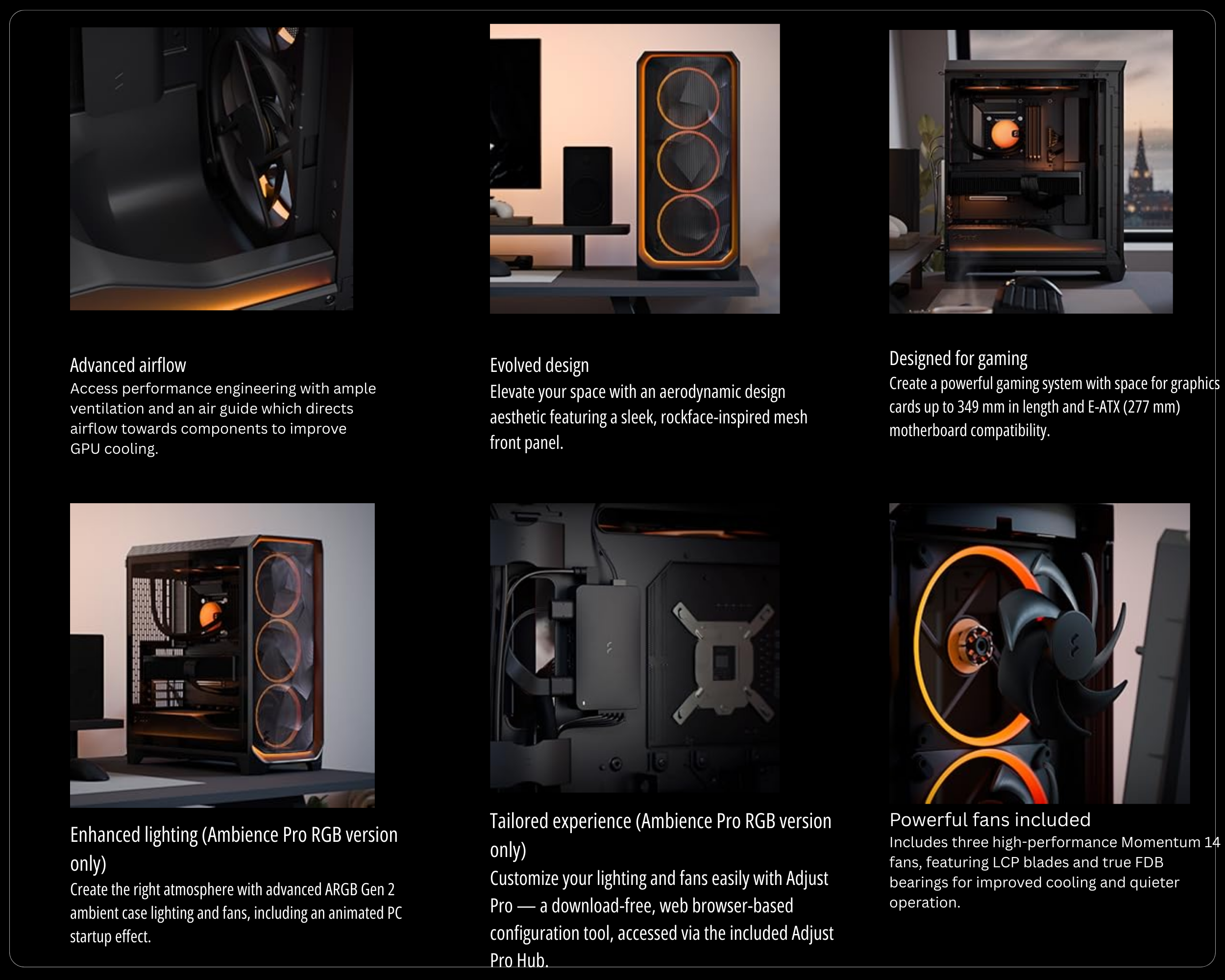

  • Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling

  • Elevate your space with an aerodynamic design expression featuring a sleek, rockface-inspired mesh front panel

  • Design a powerful gaming system with space for graphics cards up to 349 mm in length and E-ATX (277 mm) motherboard compatibility

  • Includes three powerful Momentum 14 fans, featuring LCP blades and true FDB bearings for lasting performance and quieter operation

  • Cool your build further with up to a 280 mm top radiator and 360 mm front radiator, with removable brackets for easy installation

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Color:

Shop The ASUS Store

Free Shipping On All Orders
Free Hassle-Free Returns

Shop All Video Graphics Cards

  • Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling

  • Elevate your space with an aerodynamic design expression featuring a sleek, rockface-inspired mesh front panel

  • Design a powerful gaming system with space for graphics cards up to 349 mm in length and E-ATX (277 mm) motherboard compatibility

  • Includes three powerful Momentum 14 fans, featuring LCP blades and true FDB bearings for lasting performance and quieter operation

  • Cool your build further with up to a 280 mm top radiator and 360 mm front radiator, with removable brackets for easy installation

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

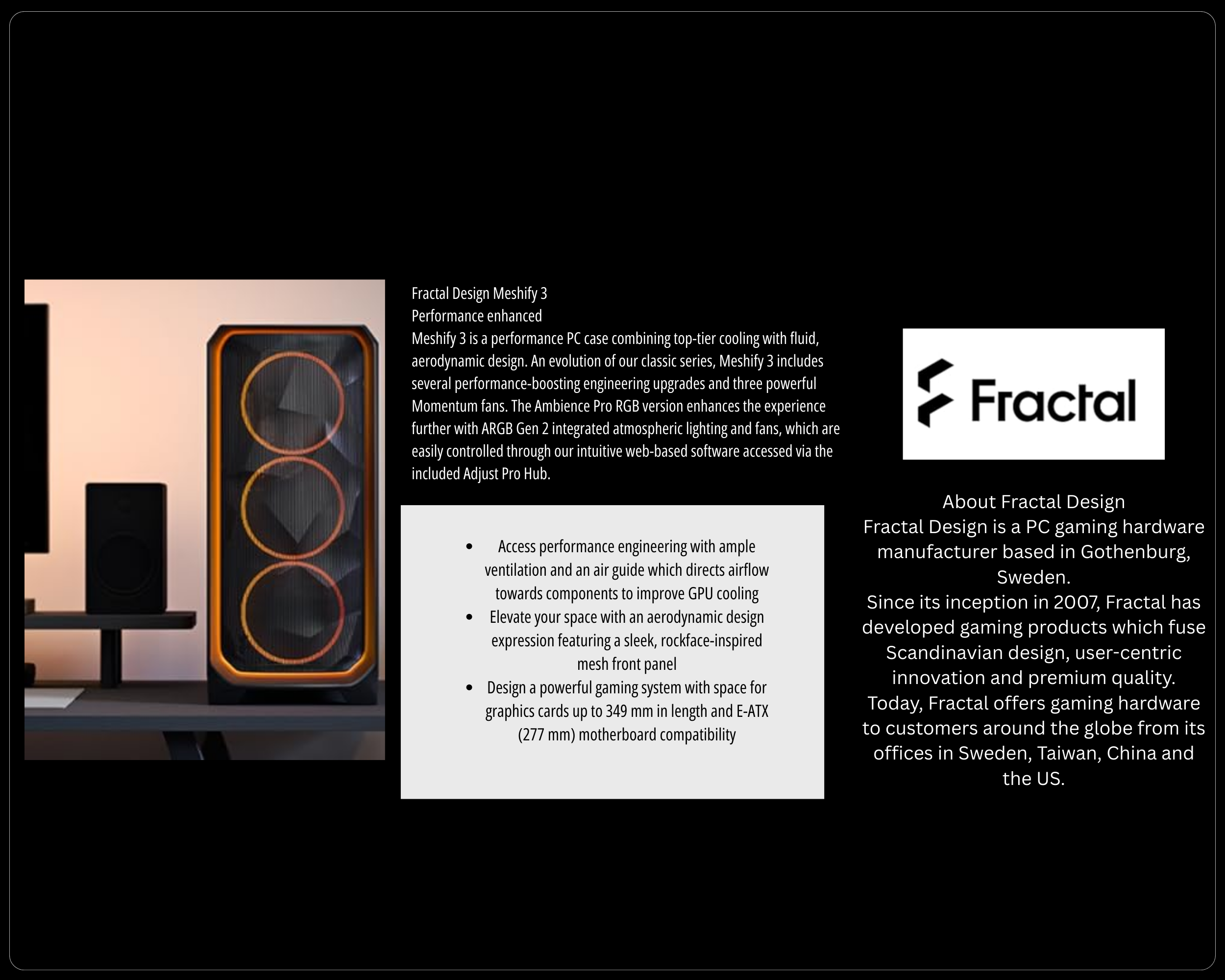

Optimize the performance of your build with the Meshify 3 Mid-Tower Case from Fractal Design. Designed for highly efficient airflow, this steel and glass mid-tower chassis features a rockface inspired mesh front panel with three powerful Momentum 14 fans. Install an E-ATX, ATX, mATX, or mini-ITX motherboard. The interior also supports up to seven expansion, including an up 13.7" long graphics card. For storage, up to two 3.5" drives or four 2.5" drives may be installed into brackets behind the motherboard tray. The bottom also includes two 2.5" drive mounts. An integrated cable channel helps to ensure a clean and organized build. The toolless design allows you to quickly and easily add or remove components.

High-Speed Connectivity

The front panel includes one USB-C port that supports up to 20 Gb/s connections while the two USB-A 3.2 Gen 1 ports work with 5 Gb/s compatible devices. The 3.5mm audio jack allows you to connect your preferred headset.

Glass Panel

Showcase your hardware with the light-tinted tempered glass side panel.

Included Fans

Featuring fluid dynamic bearings and LCP blades, the Momentum 14 fans provide efficient and quiet cooling performance.

Efficient Cooling

Up to six 120mm or five 140mm fans in total may be installed across the front, top, and rear panels.

Radiator Support

Up to a 360mm radiator may be installed on the front panel with support for a 280mm radiator on the top. A 120mm radiator may be installed on the rear panel.

Here are the features of the product.

  • E-ATX, ATX, Micro-ATX & Mini-ITX Support
  • Steel Frame w/ Glass Side Panel
  • 2 x 3.5" or 4 x 2.5" Drive Brackets
  • 2 x 2.5" Drive Mounts
  • 7 x Expansion Slots
  • USB 3.2 Gen 1 & 2x2 | 3.5mm Audio
  • 3 x Momentum 14 Fans Included
  • Toolless Design
  • Support for GPUs up to 13.7"
  • Supports Windows 11 (64-Bit)

These are the technical specifications.

Brand Fractal Design
Series Meshify 3
Model FD-C-MES3A-01
Part Number FD-C-MES3A-01
Type ATX Mid Tower
Color Black
Case Material Steel
With Power Supply No
Power Supply Mounted Bottom
Motherboard Compatibility ATX / E-ATX / Micro ATX / Micro ATX / ATX / E-ATX / Micro ATX / ATX / Mini ITX / E-ATX / Mini ITX
Side Panel without Side Window
Dust Filters Bottom
Details
External 5.25" Drive Bays No
Internal 3.5" Drive Bays 2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays 2 x Dedicated 2.5" SSD on case floor
Expansion Slots 7
Expansion
Front Ports 1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Front Panel Ports
Fan Options Front: 3 x 120/140 mm (3 x Momentum 14 PWM included)
Top: 2 x 120/140 mm
Rear: 1 x 120 mm
Pre-installed Fans Front - 3 x 140mm
Radiator Options Front - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 240mm / Top - Up to 280mm
140mm Fans 3
Cooling System
Max GPU Length Max GPU Length: 349 mm
Max GPU Height: 176 mm (slot 7, including cables)
Max CPU Cooler Height 173 mm
Max PSU Length 180 mm
Dimensions 17.05" x 9.02" x 19.96"
Weight 19.18 lbs.
Dimensions & Weight
Package Content Meshify 3 case
User manual
Accessory box
Additional Info




These are the technical specifications.

These are the technical specifications.
