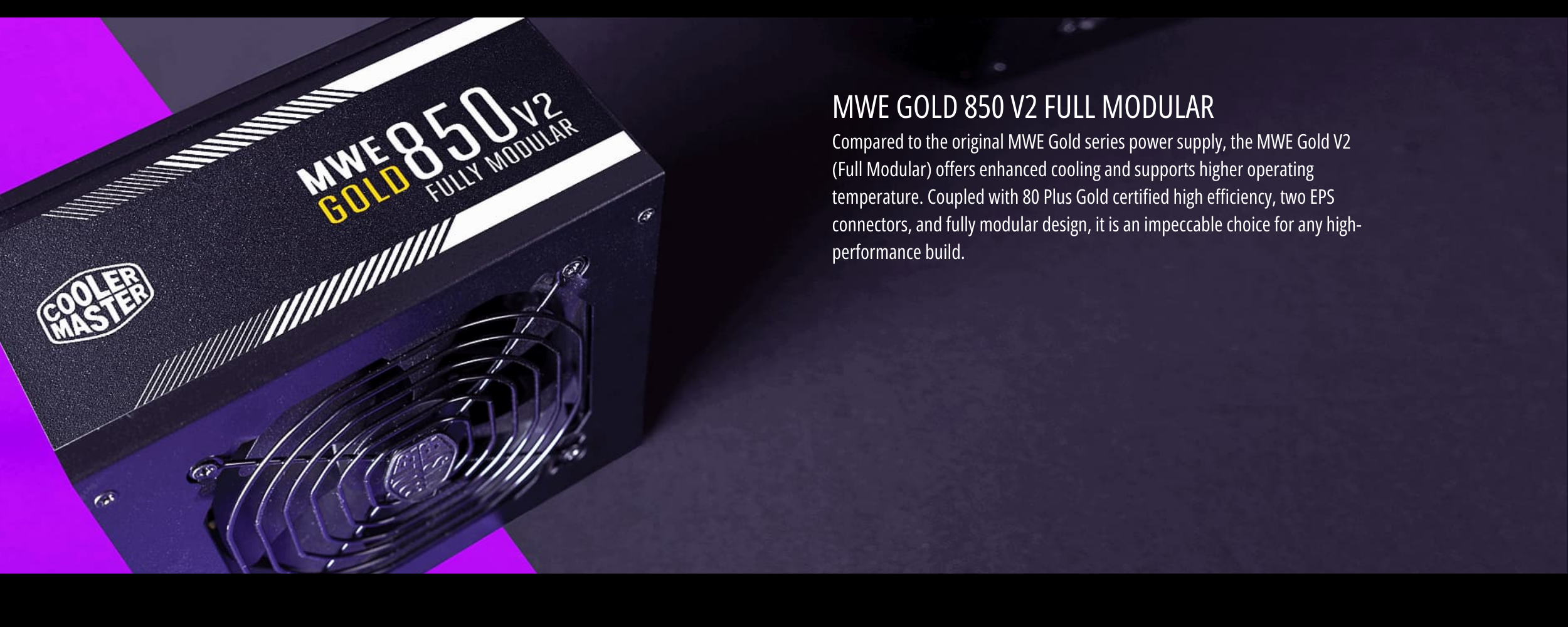

Get efficient power with the MWE Gold V2 850W 80 PLUS Gold Modular Power Supply from Cooler Master. Sporting a single +12V rail that provides up to 850W of power, this 80 PLUS Gold PSU typically delivers up to 90% efficiency. Featuring flat modular cabling, the MWE Gold V2 has a 24-pin motherboard connector, as well as two EPS, 12 SATA, four PCIe, and four peripheral 4-pin connectors. Designed for quiet operation, this PSU features a maximum noise level of 25.9 or 17.8 dBA at 100% or 50% load, respectively. If running at 20% load or lower, this PSU is capable of silent operation. A 120mm hydraulic dynamic bearing fan ensures efficient cooling, and the Cooler Master MWE Gold V2 features a mean time between failure (MTBF) of 100,000 hours.

Power Up

Improving upon the original MWE Gold power supply, V2 is designed for efficient operation and modular connectivity.

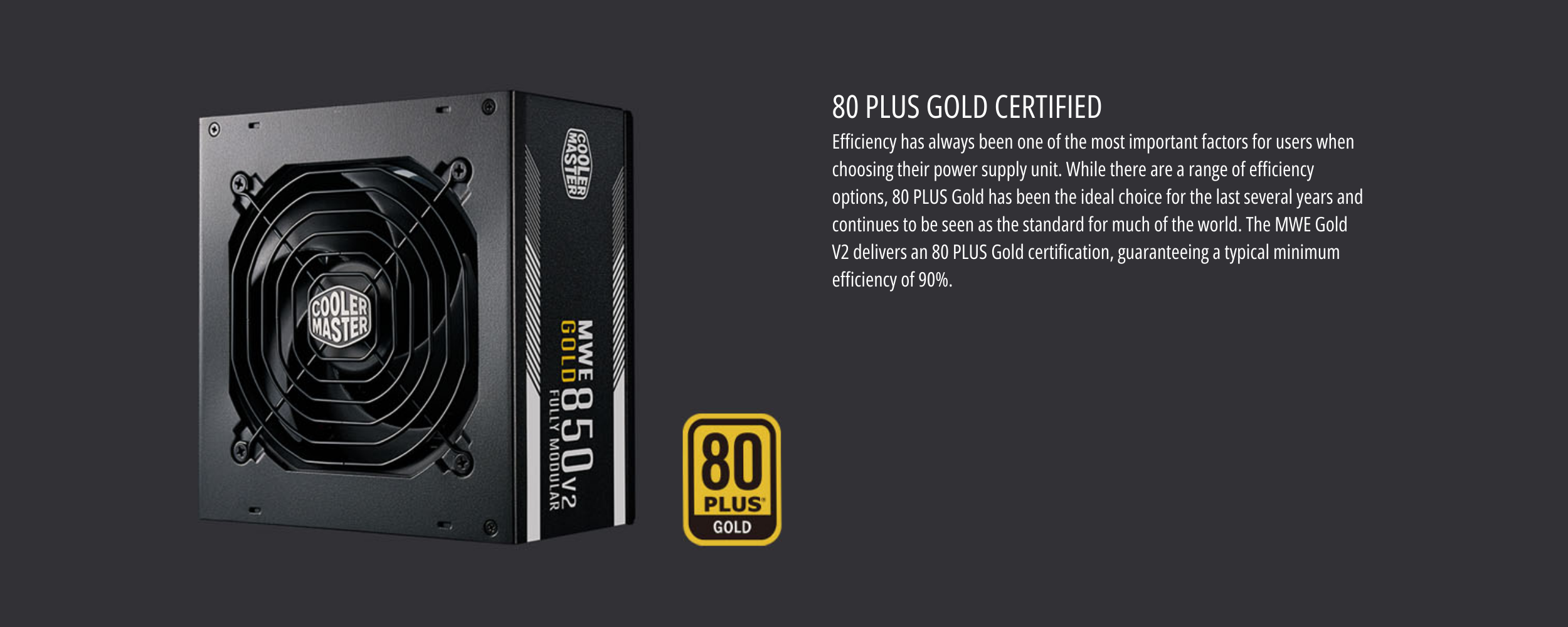

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. The MWE Gold V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.

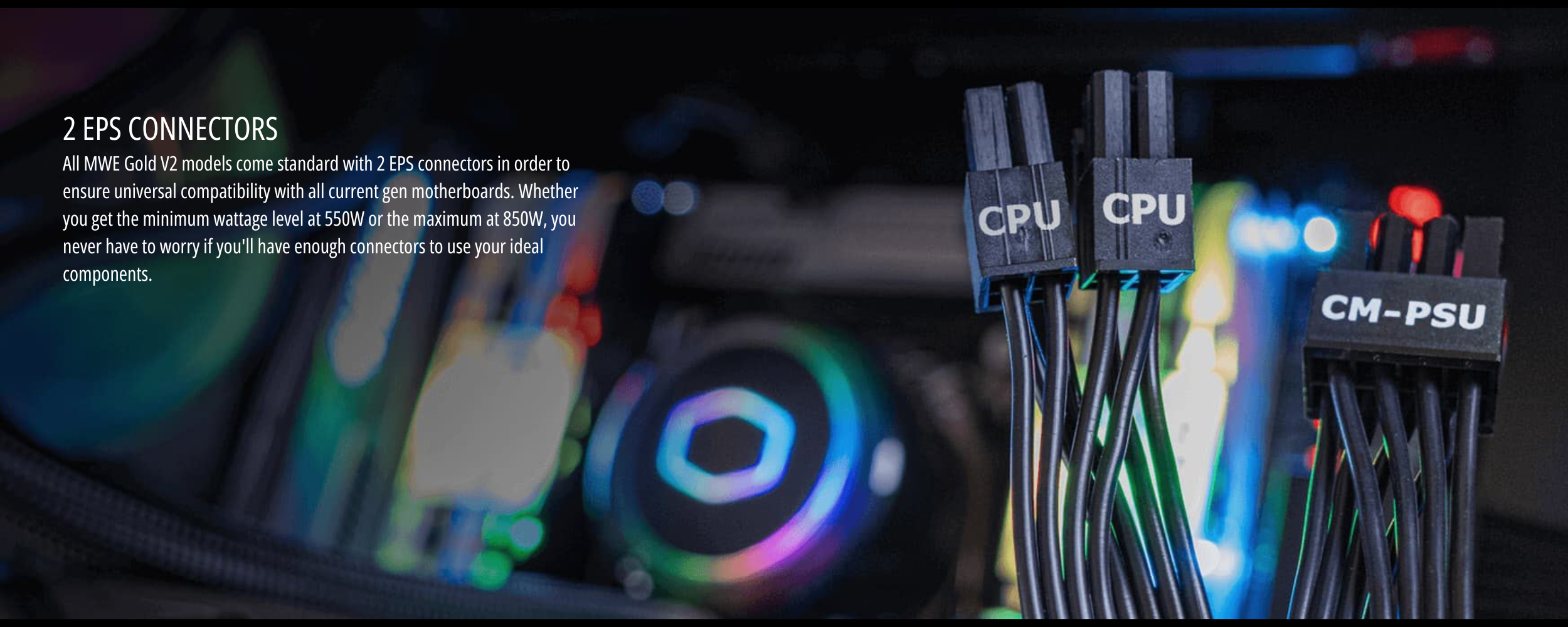

Two EPS Connectors

The MWE Gold V2 comes with two EPS connectors to ensure universal compatibility with modern motherboards so you never have to worry about connectivity.

Quiet Cooling

The MWE Gold V2 has been upgraded with a Hydraulic Dynamic Bearing (HDB) fan to deliver quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU. Furthermore, a number of measures have been applied to the MWE Gold V2 design to reduce sound output and ripple noise for a quieter user experience.

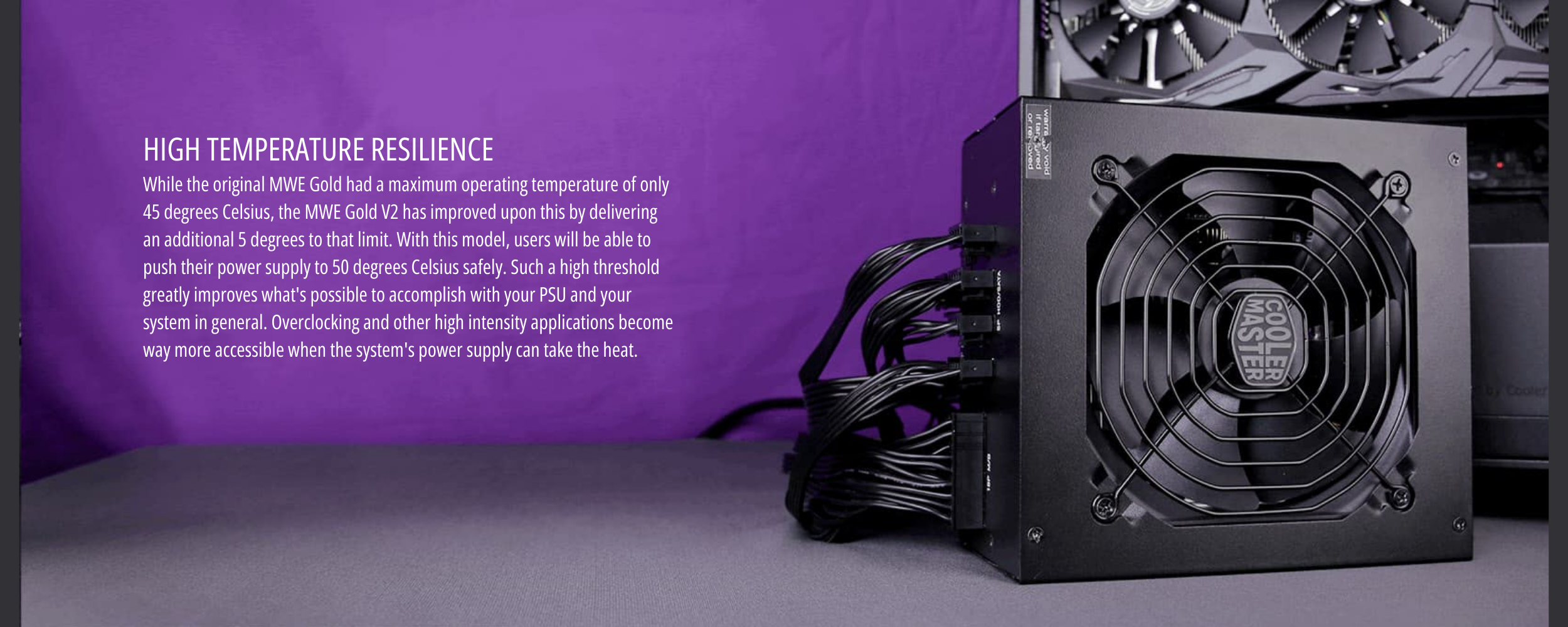

High Temperature Resilience

Designed to operate in higher temperatures than its predecessor, the V2 allows users to safely push their power supply to 122°F. This threshold improves what is possible with your PSU and your system in general, including overclocking and other high-intensity applications.

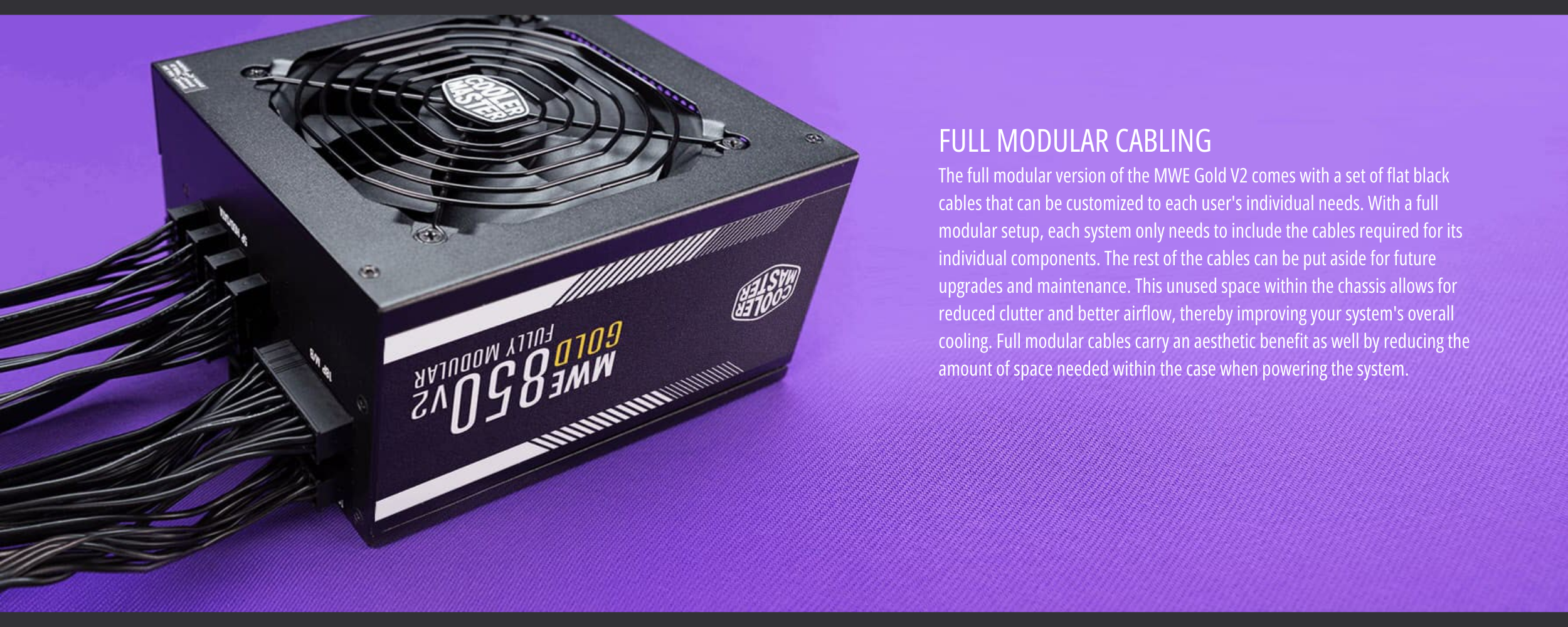

Fully Modular Cabling

The fully modular design of the MWE Gold V2 features flat black cables that can be customized to each user's individual needs. By using only the cables you need, you can cut down on chassis clutter while streamlining airflow and improving your system's overall cooling.

• ATX Form Factor
• AMD B550 Chipset
• AM4 Socket
• 4 x Dual-Channel DDR4-5100 (OC)
• 6 x SATA III | 2 x M.2
• PCIe 4.0 x16 Slot
• PCIe 3.0 x16 | 3 x PCIe 3.0 x1 Slots
• SupremeFX S1220A 7.1-Channel HD Audio
• Wi-Fi 6E (802.11ax) | Bluetooth 5.2
• Supports Windows 11 (64-Bit)

Brand	Cooler Master
Series	MWE Gold 850 V2
Model	MPE-8501-AFAAG-US

Type	ATX 12V Ver. 2.41
Maximum Power	850 W
Fans	120mm HDB Fan
PFC	Active
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	12
Max PSU Length	160 mm
Modular	Full Modular
Power Good Signal	100-500ms
Hold-up Time	16ms min.
Efficiency	90% @ Typical Load
Energy-Efficient	80 PLUS GOLD Certified
Protection	OVP, OPP, OTP, SCP, OCP, UVP
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	12 - 6A
Output	+3.3V@20A, +5V@20A, +12V@70.8A, -12V@0.3A, +5VSB@3A
MTBF	>100,000 Hours
Approvals	TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
Connectors	1 x ATX 24 Pin 1 x EPS 4+4 Pin 1 x EPS 8 Pin 4 x PCI-e 6+2 Pin 12 x SATA 4 x Peripheral 4 Pin
Cable Spec	24Pin MB: One cable (610mm) 4+4Pin CPU: One cable (600mm) 8Pin CPU: One cable (650mm) 2 x PCI-E 6+2Pin: Two cables (550+120mm) 4 x SATA: Three cables (500+120+120+120mm) 4 x Molex: One cable (500+120+120+120mm)

Features

Highly Efficient Performance: The 80 PLUS Gold certification guarantees a minimum efficiency of 90%. 2 EPS Connectors: 2 EPS connectors included with all models for universal current generation motherboard compatibility. High Temperature Resilience: The new gen offers an increase in operating temperature to its predecessor to a maximum of 50 degrees Celsius. Fully Modular: Modular flat black cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance. Hydro Dynamic Fan: The 120mm HDB fan creates less friction, for a smoothly and low RPM operations, while keeping the noise level down.

Dimensions	3.39" x 5.91" x 6.30"
Weight	4.96 lbs.

Package Content	MWE Gold 850 V2 Connectors Power Cord 4x screws Manuel
