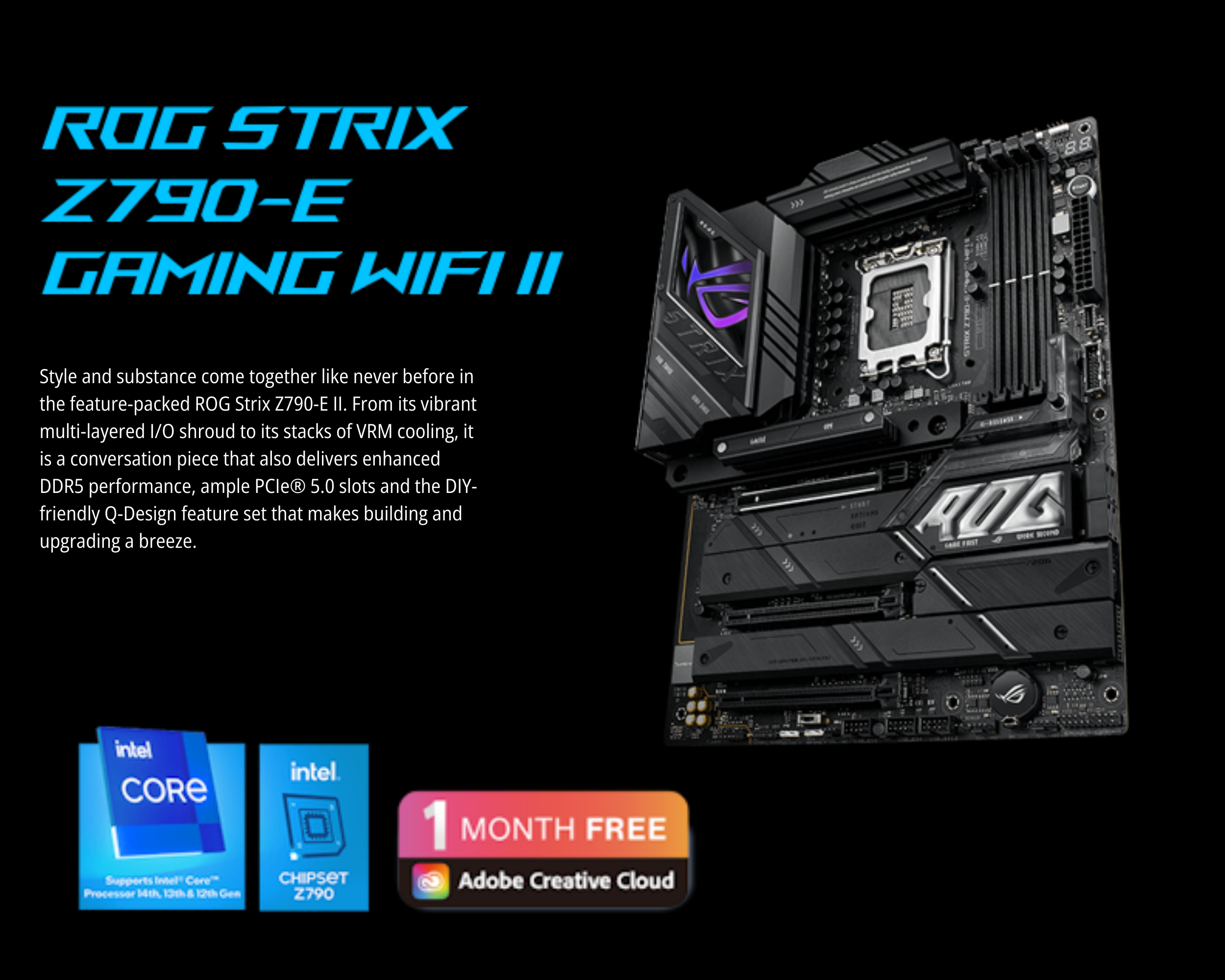

ASUS ROG Strix Z790-E Gaming WIFI II ATX Gaming Motherboard

Designed for gaming enthusiasts looking to take their experience to the next level, the robust ASUS ROG Strix Z790-E Gaming WIFI II ATX Gaming Motherboard drives performance with an enhanced electrical layout, PCIe 5.0 technology, and vast connectivity options for gaming peripherals. At the heart of the ROG STRIX Z790-E is an LGA 1700 socket and Z790 chipset, allowing you to leverage a wide range of 12th, 13th, and 14th Gen Intel processors. Four DDR5 Dual-Channel RAM slots allow you to install up to 192GB of memory with speeds up to 8000 MHz when overclocked, providing you with increased multitasking and rendering capabilities. Five M.2 PCIe and four SATA III storage interfaces allow you to combine an array of storage drives to build a massive gaming library. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while two PCIe 4.0 x16 (in x4 mode) slots support a wide range of utility cards. Between the back panel and internal headers, you get access to several USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 ports, offering plenty of support for peripherals such as mice, keyboards, and controllers as well as resource-demanding devices like external drives. Wireless devices can utilize Bluetooth 5.4 technology for a reliable cable-free experience. Connect to your wireless network with Wi-Fi 7 (802.11be) or use the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection.

Enhanced Power Solution

Equipped with 18+1+2 110A power stages with ProCool II connectors, alloy chokes, 8-layer PCB, and durable capacitors, the ROG STRIX Z790-E GAMING WIFI II delivers stable power throughout the entire motherboard, maintaining electrical volume whether you are performing simple tasks or operating at full power during resource-demanding processes.

Connectivity

Between the backplate and the internal headers, the ROG STRIX Z790-E GAMING WIFI II offers robust connectivity suitable for your peripherals. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports deliver up to 5 and 10 Gb/s data transfer speeds, respectively, suitable for webcams, mics, and external storage drives. A USB-C 3.2 Gen 2x2 port gives you up to 20 Gb/s data transfer speed for resource-demanding devices such as storage arrays and audio interfaces. You can expand your connectivity with an internal Thunderbolt 4 header, allowing you to utilize high-speed connectivity that supports fast transfer speeds and Power Delivery technologies.

7.1-Channel Audio

Immerse yourself in your favorite games with high-fidelity audio backed by the ROG SupremeFX 7.1-channel ALC4080 codec and Savitech SV3H712 amplifier, working together to drive clear and crisp audio. Gold-plated audio jacks and premium capacitors optimize audio conductivity for a reliable signal, preventing static and other interference.

Comprehensive Cooling

To ensure your system remains cool under heavy loads, the ROG STRIX Z790-E GAMING WIFI II motherboard incorporates a large VRM heat sink for capacitors and chokes as well as integrated double-sided M.2 heat sinks and a unique chipset heat sink delivering better thermal performance while preventing throttling. PWM chassis fan headers and AIO pump header offer enhanced cooling capabilities and support that can be modified to your preference.

Play in Style

Brushed aluminum finish and integrated RGB colorization combined with ASUS AURA SYNC software allows you to leverage a wide range of colors and effects to make your system stand out. You get extensive AIO cooler support with overlocking potential.

Additional Enhancements

Several on-board enhancements help with the installation process while also providing additional support for the long term with SafeDIMM RAM seating, PCIe 5.0 Safeslot, Q-LED, Q-Code, M.2 Q-Latch, Q-Antenna, and Start Button. Additionally, BIOS FlashBack and Clear CMOS offers support on a software level by allowing you to easily update the BIOS without assembling your entire system and reset the CMOS.

AI Equipped

Leveraging Artificial Intelligence, the ROG STRIX Z790-E GAMING WIFI II can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without compromising thermal capabilities. AI noise cancellation is an audio-focused utility used to reduce background sound, ensuring others can hear you clearer when engaging in team-focused titles or delivering presentations remotely. You also get advanced BIOS options and automatic CPU boosting with TPU insight, Digital Power Control, and Turbo Core APP. You also get access to Armoury Crate and a trial run of AIDA64 Extreme Software.
