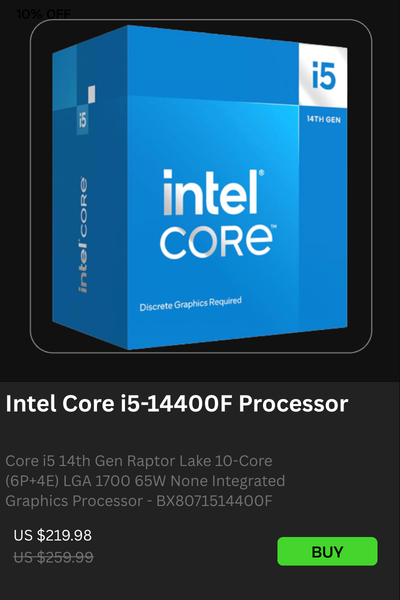

Intel Core i5-14400F 2.5 GHz 10-Core LGA 1700 Processor

$209.98

Shop The Intel Store

Free Shipping On All Orders
Free Hassle-Free Returns

Shop All Desktop Processors

  • 10 cores (6 P-cores plus 4 E-cores) and 16 threads

  • Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance

  • Up to 4.7 GHz unlocked. 20MB Cache

  • Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards

  • PCIe 5.0 and 4.0 support. DDR4 and DDR5 Memory support. RM1 thermal solution included. Discrete graphics required.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Shop The Intel Store

Free Shipping On All Orders
Free Hassle-Free Returns

Shop All Desktop Processors

  • 10 cores (6 P-cores plus 4 E-cores) and 16 threads

  • Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance

  • Up to 4.7 GHz unlocked. 20MB Cache

  • Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards

  • PCIe 5.0 and 4.0 support. DDR4 and DDR5 Memory support. RM1 thermal solution included. Discrete graphics required.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available





Intel i5-14400F Overview Power up your productivity, gaming, and content creation with the Intel Core i5-14400F 2.5 GHz 10-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14400F powers applications and games with six 2.5 GHz Performance-cores while the four low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time. With 20MB of cache and a 5 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. The Core i5-14400F also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 4800 MHz. The Core i5-14400F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. A Laminar RM1 cooler is included.

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.

Intel Thread Director

The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 16 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Here are the features of the product.

  • 10 Cores & 16 Threads
  • 2.5 GHz Base P-Core Clock Speed
  • 5 GHz Maximum Turbo Boost Frequency
  • LGA 1700 Socket
  • 20MB Cache Memory
  • Dual-Channel DDR5-4800 Memory
  • Hybrid Core Architecture
  • Includes Laminar RM1 Cooler
  • 14th Generation (Raptor Lake-S Refresh)
  • Supports Windows 11 (64-Bit)

These are the technical specifications.

Brand Intel
Processors Type Desktop
Series Core i5 14th Gen
Name Core i5-14400F
Model BX8071514400F
CPU Socket Type LGA 1700
Core Name Raptor Lake
# of Cores 10-Core (6P+4E)
# of Threads 16-Threads
Operating Frequency Performance-core Base Frequency: 2.5 GHz
Efficient-core Base Frequency: 1.8 GHz
Max Turbo Frequency Max Turbo Frequency: 4.7 GHz
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
L2 Cache 9.5MB
L3 Cache 20MB
Manufacturing Tech Intel 7
Instruction Set 64-Bit
Hyper-Threading Support Yes
Memory Types DDR4 3200 / DDR5 4800
Memory Channel 2
Max Memory Size 192 GB
Max Memory Bandwidth 76.8 GB/s
Virtualization Technology Support Yes
Integrated Graphics None Integrated Graphics
Scalability 1S Only
PCI Express Revision 5.0 / 4.0
PCI Express Configurations Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes 20
Thermal Design Power 65W
Max Turbo Power 148W
Cooling Device Intel Laminar RM1 included
Compatible Desktop Chipsets Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790
* BIOS update may be required when used with some old chipset motherboard
Operating System Supported Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)
Details




These are the technical specifications.

These are the technical specifications.
