MSI B650 GAMING PLUS WIFI AM5 ATX Motherboard

$160.98 $199.98

Save : $73.00 ( 31% ) - For A Limited Time Only

FREE SHIPPING
EASY HASSLE-FREE RETURNS

Shop All Motherboards
Visit The MSI Store

Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G

Save : $73.00 ( 31% ) - For A Limited Time Only

FREE SHIPPING
EASY HASSLE-FREE RETURNS

Shop All Motherboards
Visit The MSI Store

Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G

Quantity:

AMD Ryzen 9 7900X3D 4.2 GHz 12-Core AM5 Processor (Copy) (Copy)

$339.98 $699.00

AMD Ryzen 7 9700X 3.8 GHz 8-Core AM5 Processor

$309.98 $359.98

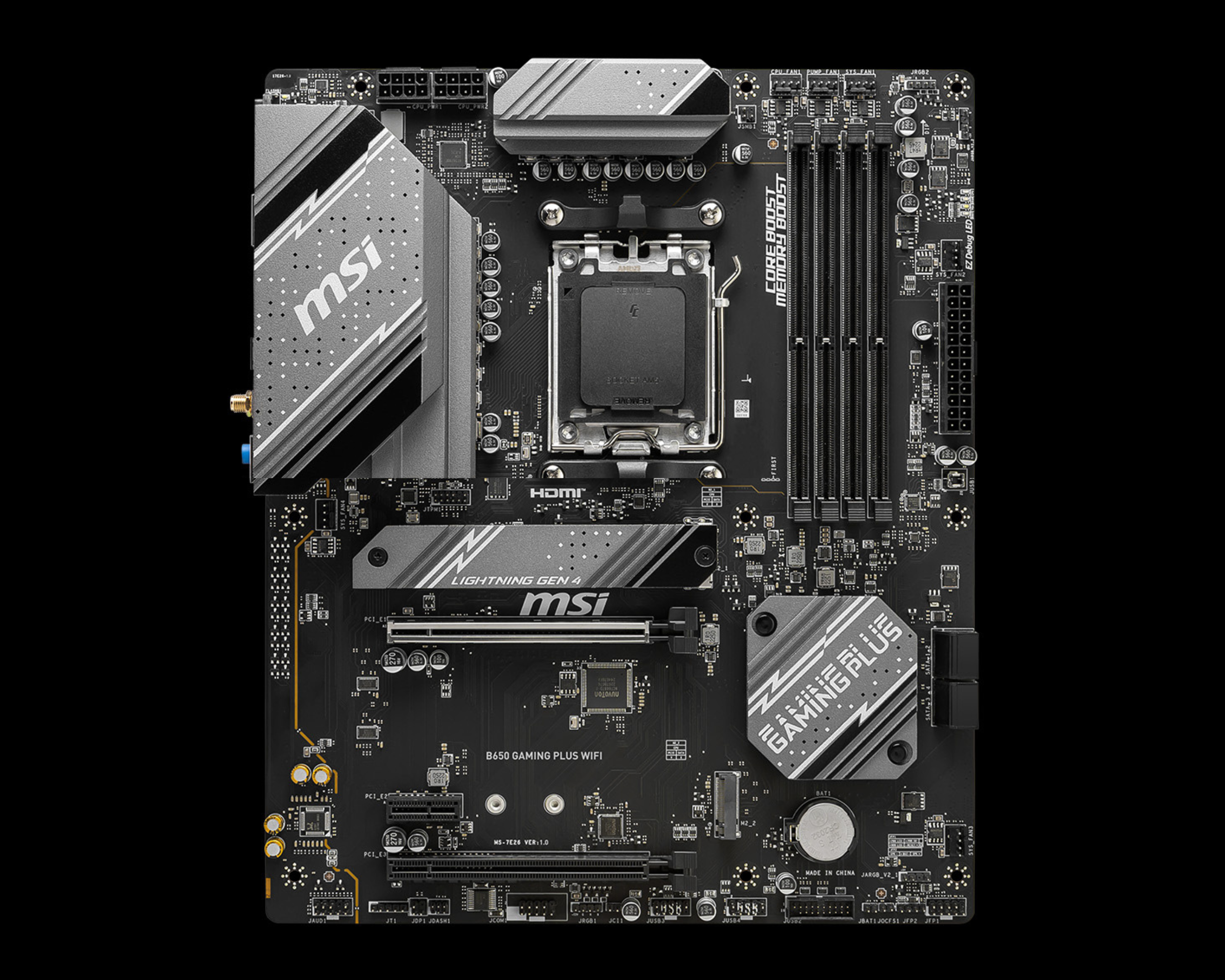

Introducing The MSI B650 Gaming Plus WiFi AM5 ATX Motherboard

Experience power and performance by starting your computer build with the MSI B650 GAMING PLUS WIFI AM5 ATX Motherboard as the foundation. Supporting AMD Ryzen 7000 series processors with the AM5 socket alongside a variety of components, you can customize your system for entertainment, content creation, and more. Boost efficiency by installing up to 192GB of 6000 MHz dual-channel DDR5 memory in overclocked mode across four slots. Two M.2 PCIe 4.0 x4 SSD slots are available in addition to four SATA III ports for storage drives. The rear panel includes 20 Gb/s USB-C 3.2 Gen 2x2, 10 Gb/s USB-A 3.2 Gen 2, and 5 Gb/s USB-A Gen 1 ports. Dual PCIe 4.0 x16 slots allow you to install high-performance graphics cards and other expansions. Built-in Wi-Fi 6E and a 2.5G Ethernet port allow you to connect to compatible networks for smooth online experiences. Windows 10 or 11 is required to take advantage of all the motherboard's features.

DIY Friendly

PCI-E Steel Armor reinforces the expansions slots with metal plating and extra solder points, giving it the rigidity to handle heavy graphics cards. The EZ DEBUG LED and Flash BIOS Button help to streamline your troubleshooting process.

Expansion Slots

Two PCIe 4.0 x16 slots are available, with the first capable of supporting powerful graphics cards while the second one operates in x4 mode. The PCIe 3.0 x1 slot is ideal for network and port expansion cards.

Thermal Enhancements

This motherboard is designed to avoid heat throttling with a variety of features such as an extended heat sink and a 7W/mK MOSFET thermal pad. M.2 Shield Frozr covers help to ensure optimal SSD performance during heavy sustained workloads. CPU and liquid cooling pump headers are available for your choice of cooling system.

USB Connectivity

The rear panel includes a USB-C 3.2 Gen 2x2 port that can transfer up to 20 Gb/s with compatible devices while the two USB-A 3.2 Gen 2 ports support up to 10 Gb/s. There are also four 5 Gb/s USB-A 3.2 Gen 1 ports. Front panel headers include support for two USB-A 3.2 Gen 1, one USB-C 3.2 Gen 2, and four USB-A 2.0 ports.

Graphics Ports

Both the HDMI 2.1 and DisplayPort 1.4 outputs support up to 4K, 60 Hz HDR monitors when using CPUs with integrated graphics.

Here are the key features of the product.

These are the technical specifications.

Brand	MSI
Model	B650 GAMING PLUS WIFI

Model

CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Supported CPU

Chipset	AMD B650

Chipsets

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6000+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Supports AMD EXPO

Memory

PCI Express 4.0 x16	2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1	1x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Expansion Slots

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Storage Devices

Audio Chipset	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Audio Channels	7.1 Channels

Onboard Audio

LAN Chipset	Realtek 8125BG 2.5G LAN
Max LAN Speed	2.5Gbps
Wireless LAN	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
Bluetooth	Supports Bluetooth 5.3 Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Onboard LAN

Back I/O Ports	1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A / 6 x Audio Jacks

Rear Panel Ports

Onboard USB	4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Other Connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0)
